Test Fabric Behaviour Before Choosing the Embroidery Design

A fabric name is a useful starting point, but it cannot tell you whether a particular embroidery will sit comfortably on the finished item. Two cotton fabrics can behave very differently: one holds a straight edge, while the other stretches, curls or collapses into soft folds. Choosing a design from the fiber label alone leaves those differences undiscovered until the needle starts moving.

Before selecting the motif, make a short record of the actual material. You need to answer two questions: what movement and surface changes must the embroidery accommodate, and which design features deserve a trial? This guide builds that record from construction, stretch, recovery, drape and care information, then turns it into a small, purposeful stitch-out.

Start with the fabric in its intended condition

Take the sample from the material you will use, ideally from the same piece or production lot. Identify the face, the intended top and the direction of any stripe, nap or visible grain. Keep enough untouched fabric beside the test area to compare appearance later. A tiny corner scrap may show the weave but cannot demonstrate how a broad embroidered panel will hang.

Write down the intended item and placement. A woven cotton intended for a structured bag has a different job from a cotton blouse sleeve, even when both feel similar on the table. Note whether the embroidered area must bend, stretch, fold, touch skin or remain visually flat.

Check the supplier's care information before preparing the sample. If the final textile will be washed and the instructions permit it, reproduce the planned preparation and care process. Do not automatically soak a structured garment, coated material or unknown vintage cloth. When care information is missing, record the uncertainty instead of assuming that the fiber name grants permission to wash or press.

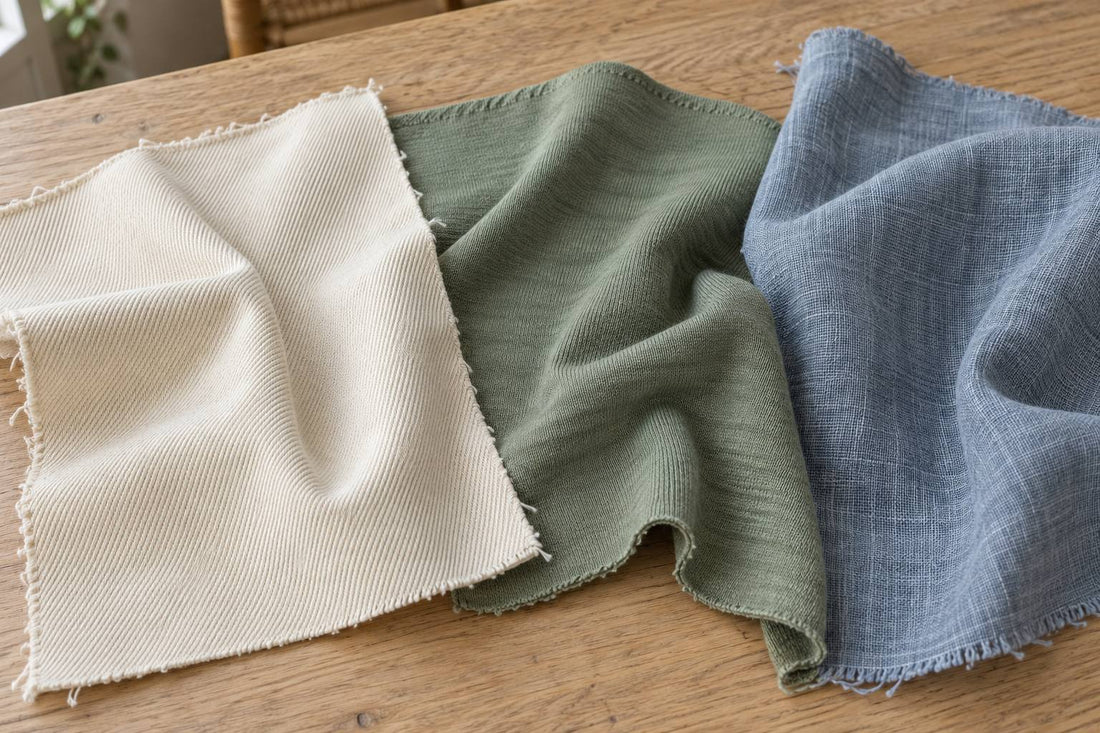

Look at construction, not just composition

Under good light, inspect both sides. Woven fabric is built from intersecting yarn systems; knitted fabric is built from loops. A nonwoven or bonded sheet has a different structure again. The textile industry's introductions to weaving and knitting provide useful construction references when the surface is unfamiliar.

For this assessment, you do not need to name every weave. Note what you can actually observe: tightly packed yarns, open gaps, visible knit columns, a brushed face, a coating, or several bonded layers. Turn the cloth over if the decorative surface hides its base. Avoid declaring it stable simply because it feels thick.

A firm woven may be an easier starting point for a first machine sample, but it can still bend, shift on the bias or be overloaded by a concentrated stitched area. A knit may feel substantial while stretching readily in one direction. Keep the construction description separate from the behavior you observe next.

Check directional stretch and return to shape

Use a spare area and begin with the cloth relaxed on the table. Gently ease it along one direction, release it, then repeat along the perpendicular direction. On woven material, a gentle diagonal check can reveal movement that was less obvious along the straight yarn directions. Do not pull until the sample reaches its limit; the purpose is to understand ordinary handling, not to damage it.

Observe what happens after release. Does the area return promptly, remain slightly elongated, curl at the edge or look wavy? Stretch describes movement under a pull. Recovery describes the return afterward. A sample that stretches readily and recovers well still needs a design and support system that allow the finished item to function.

For a more repeatable workshop note, choose the same relaxed span on each sample and record how you handled it. A written observation such as “crosswise movement is obvious; lengthwise movement is limited; edge remains wavy after release” is often sufficient. An informal hand test is not a standardized stretch or recovery measurement. Do not turn it into a precise performance percentage without a controlled method.

Relate that observation to placement. A motif across an area that expands during dressing faces a different demand from one on a loose pocket. Changing the placement may solve the conflict more cleanly than making the embroidered area rigid. Record the required movement before considering how much backing to add.

Separate thickness, weight and drape

Fold the sample loosely over your hand or a smooth rounded edge. Watch whether it forms soft curves, broad folds or a relatively stiff plane. Then lay it down again. This is a practical observation of drape, not a laboratory ranking. Compare samples at a similar size and orientation; a narrow strip and a large square naturally hang differently.

Thickness matters at the needle and frame, especially where seams, hems or linings add layers. Weight concerns the cloth as a whole. Drape describes how it hangs. A thick, lofty fabric can remain flexible, while a thinner coated material can feel resistant to folding. One adjective, such as “heavy,” does not capture all three.

Decide what the finished piece must retain. A scarf may need uninterrupted movement; a bag panel may welcome structure. An embroidered sample that lies beautifully flat but creates a stiff island when worn has answered only half the question. Make flexibility an acceptance requirement when it affects the item's use.

Read the surface as a limit on detail

Look at the fabric from the distance at which the finished embroidery will usually be seen. Pile, loops and a busy print can hide fine features. A smooth surface may reveal small details clearly while making a distorted outline conspicuous. Place actual thread colors against the cloth rather than choosing contrast from a screen alone.

On sheer material, inspect the reverse through the face. Temporary support may eventually disappear, but thread connections and any permanent backing can remain visible. On felt, cork, vinyl or coated fabric, note whether needle holes or pressure marks are likely to remain; test a spare piece before relying on removable basting or conventional hooping.

Record a surface question rather than prescribing a solution immediately: “Will the smallest letter remain readable?” or “Will the reverse show through?” That question identifies the feature your stitch-out must contain. Detailed support choices belong in the stabilizer selection guide.

Set care limits before choosing temporary materials

The care label describes permitted treatment of the textile item, including vulnerable finishes and components. The care-labelling guidance explains that its symbols indicate maximum permitted treatments. Those limits are not an instruction to use the hottest or most intensive process available.

Translate the information into plain notes for your project: whether water is permitted, how the item may dry, and any restrictions on pressing. Then check that your marking method, temporary support and adhesive can be removed within those limits. The original label also does not automatically validate newly added thread, backing or decoration; the complete embroidered assembly needs a compatible care process.

Do not press a stubborn mark merely because the cloth contains cotton, or assume a delicate-looking fabric cannot be washed. Use the actual instructions. Where the supplier cannot confirm a treatment, keep that limitation visible on the sample record and select a method that does not depend on an unverified cleanup step.

Turn observations into a short design brief

At this stage, choose what the design must respect rather than final stitch settings. An open composition, a smaller embroidered area, broader lettering or a different location are possible directions to investigate. None is a universal answer for a named fabric.

For example, imagine a soft jersey sleeve that stretches across the arm and returns smoothly. The design brief might require a flexible finish and enough room for dressing. A large solid emblem could conflict with that requirement. An alternative placement or a more open motif is worth testing before selecting the final file.

For a translucent woven panel, the brief might instead prioritize a tidy reverse and minimal visible support. For terry, the first question may be detail visibility. Use the design structure guide to identify the candidate file's fills, outlines and small features. Leave fabric-specific digitizing adjustments to adapting a design to its fabric.

Run the smallest trial that represents the risk

Select a small complete motif or a properly prepared test section containing the features that concern you. If the question is tiny lettering, a broad leaf alone is not informative. If it is the pull from a large fill, a few running stitches cannot clear the full design for use. The trial must be economical without removing the difficulty it is meant to examine.

Use the actual fabric and planned support. A machine manufacturer's embroidery-test guidance, under Important Embroidery Information, makes that same-material comparison explicit. Keep the sample's orientation consistent with the intended item and record the file version, dimensions, thread, needle and holding method.

When stitching ends, take the sample out of its frame and carry out the planned finishing steps. Examine the relaxed textile, not only the tensioned surface inside the hoop. Check the specific risk you recorded, then repeat the relevant movement or drape observation. Complete the permitted care step before calling the combination ready for production.

If the result fails, describe the failure before changing anything. “The hem side stays flat but the upper edge ripples” gives you more to investigate than “this fabric is difficult.” Change one responsible part of the setup or design and keep the earlier sample for comparison. A successful small trial narrows the risk; a substantially larger finished design may still need a full-size test.

Use the same questions for hand embroidery

These observations also help with hand work, although the test is stitched by hand. For surface embroidery, check whether the weave holds the chosen thread without spreading or requiring excessive force. For counted work, confirm that the fabric grid and count suit the planned scale. Fiber content alone does not tell you whether the spacing is regular enough.

Work a few representative stitches with the intended needle and thread. Release the hoop, look for enlarged holes or drawn-in areas, and feel the reverse. A fabric that accepts a fine outline may not comfortably carry a broad satin-filled shape. Keep the same care and drape requirements you would use for a machine sample.

Keep a fabric card you can actually reuse

Attach the sample or its photograph to a short record with these fields:

• Identity and condition: supplier, reference or lot, face and top direction, and preparation already completed.
• Observed behavior: construction, movement in each direction, recovery after release, thickness at the intended placement and natural drape.
• Project limits: required flexibility, visible reverse, surface detail and permitted care.
• Trial and decision: design version, support and stitching setup, finishing process, observed result and the next change if needed.

Keep unknowns marked as unknowns. Revisit the card when a new batch, finish, placement or design changes the problem. The record becomes useful because it describes the material in your hands and the result you checked, not because it assigns every fabric with the same name a permanent verdict.
